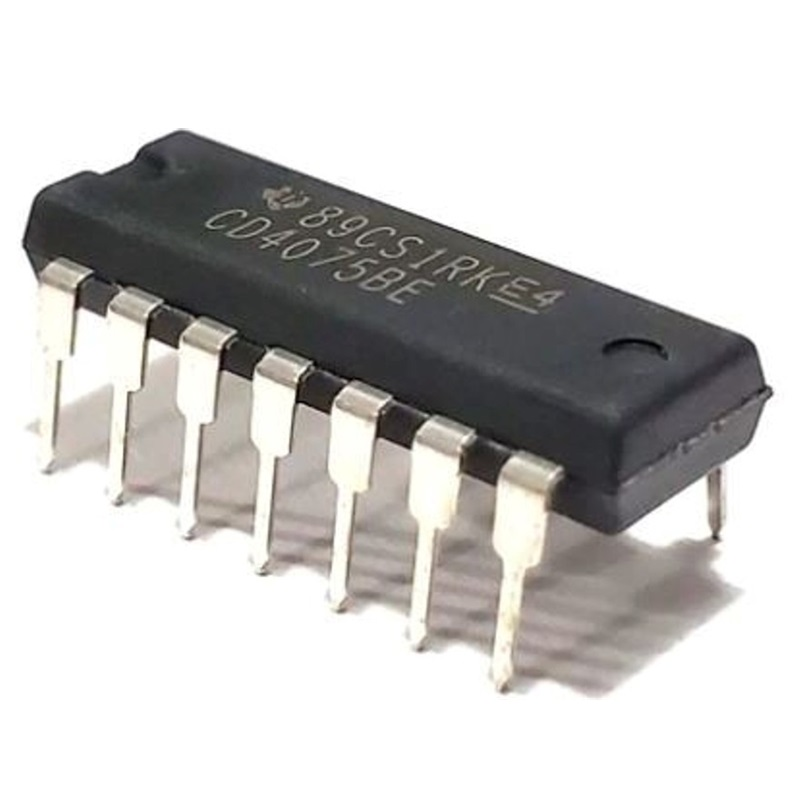

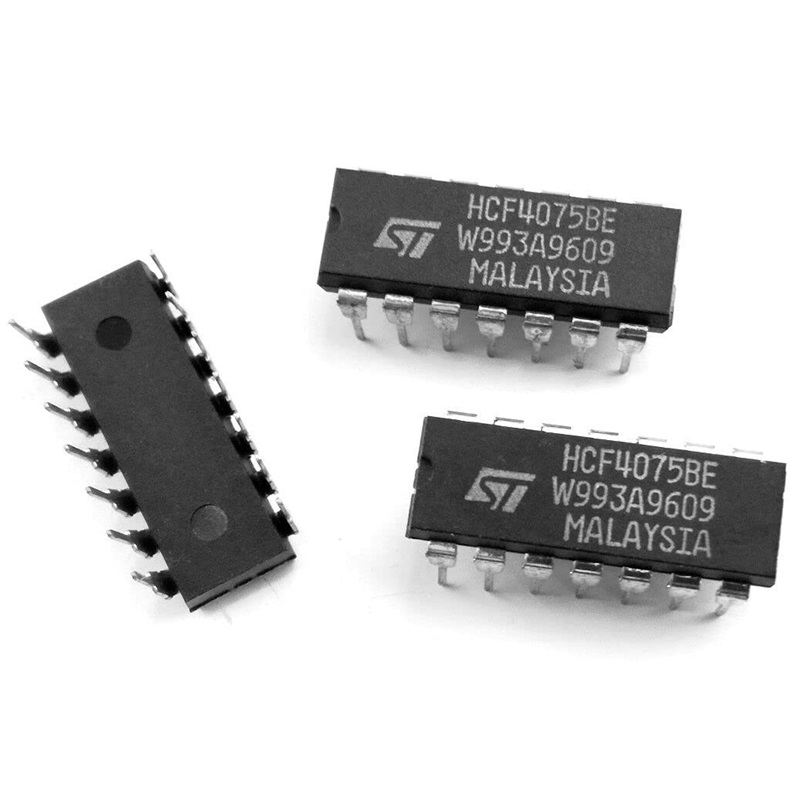

HCF4075BE (CD4075BE) TRIPLE 3 INPUT OR GATE 4075 IC (1 pcs)

Add your review


43% off

70INR40 INR

Availability:In Stock



Description

The IC 4075 is a quad 3-input NAND gate, part of the 4000 series CMOS logic family. It contains four independent NAND gates, each with three inputs. This IC is used in digital circuits to perform logical NAND operations, essential for creating complex logic functions, signal processing, and implementing various digital logic designs.

Download Data Sheet
  • Click Here

    • Highlights

  • Gate Type: Three 3-input AND gates.
  • Logic Function: Each AND gate outputs a high signal (logic 1) only when all three inputs are high (logic 1). If any input is low (logic 0), the output is low (logic 0).
  • Supply Voltage: Typically operates between 3V to 15V, making it versatile for various applications.
  • Power Consumption: Low power consumption due to CMOS technology, which is ideal for battery-powered devices.
  • Package: DIP (Dual In-line Package)
    • Applications
  • Digital Logic Circuits: Used to perform AND operations involving three inputs, essential for various digital systems.
  • Control Systems: Suitable for scenarios where multiple conditions need to be met to trigger a particular action or output.
  • Combinational Logic: Ideal for creating more complex logic functions by combining multiple 3-input AND gates.
  • Signal Processing: Useful for processing signals where multiple conditions are required for a signal to be considered active.
