Description

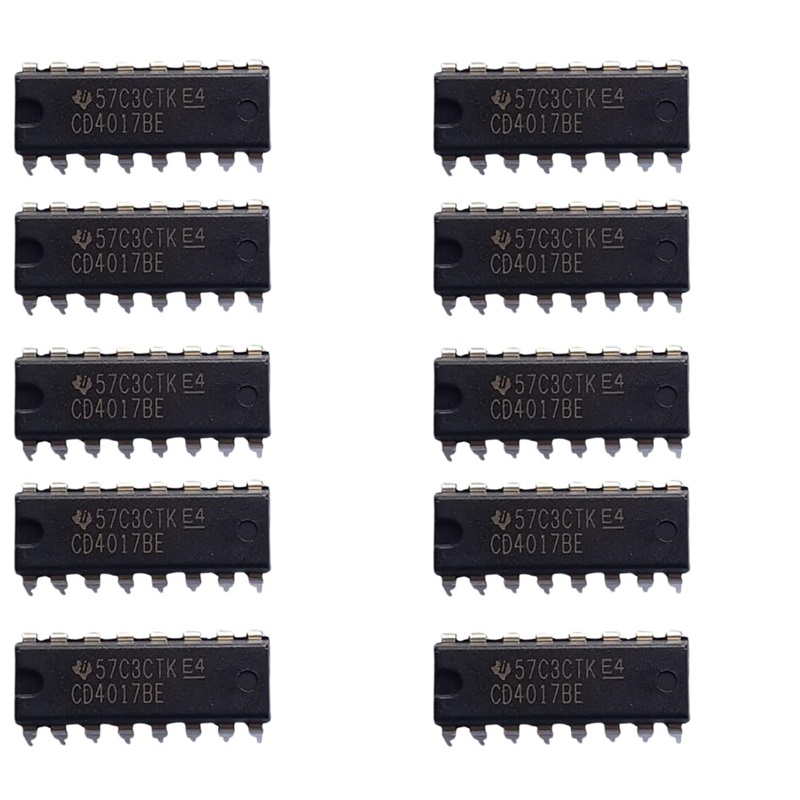

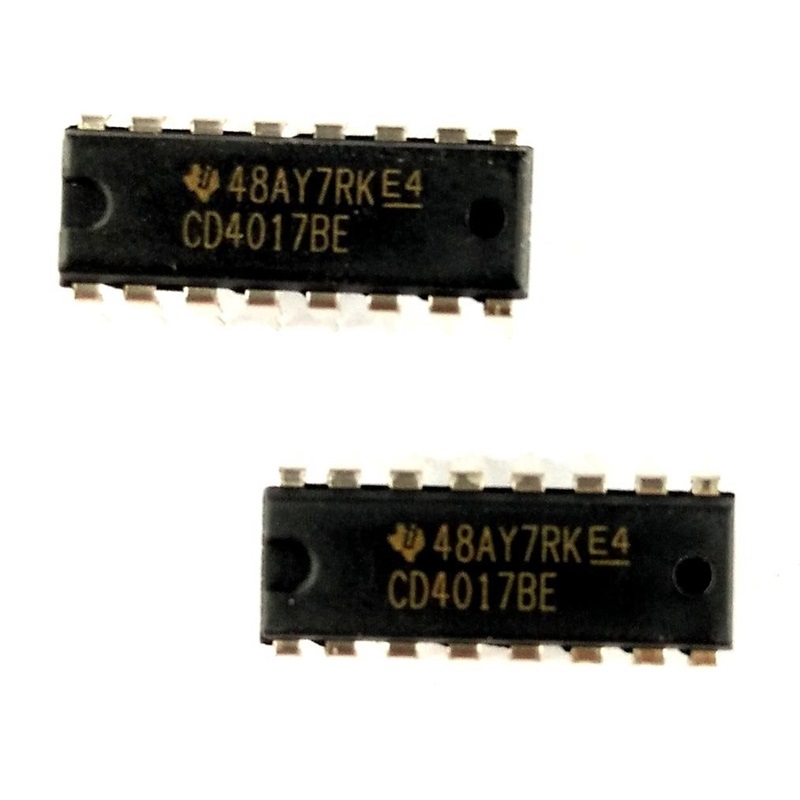

In various electronic circuit applications, this IC 4017 decade counter is one of the most versatile and useful chips. Practically, it is also known as Johnson 10 stage decade counter divider. Here the 10 number is connected through the number of o/ps this counter has that will turn into high in series in reply to each high CLK pulse that is given at its input CLK pinout. This means, all its outputs will use a single cycle of high o/p sequencing from beginning to end in reply to 10 CLKs and it is received at its input. As the name suggests, so it is counting in a way & also separating the input CLK through 10.

Highlights

Download Data Sheet
