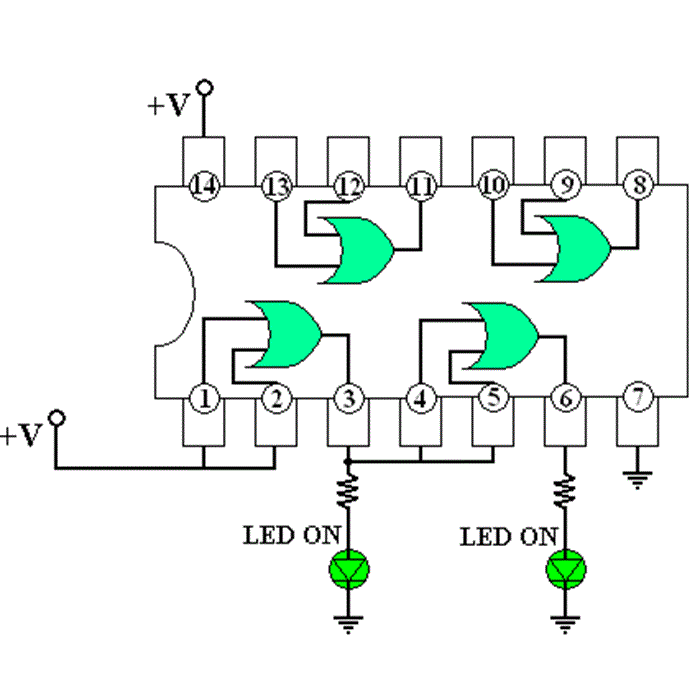

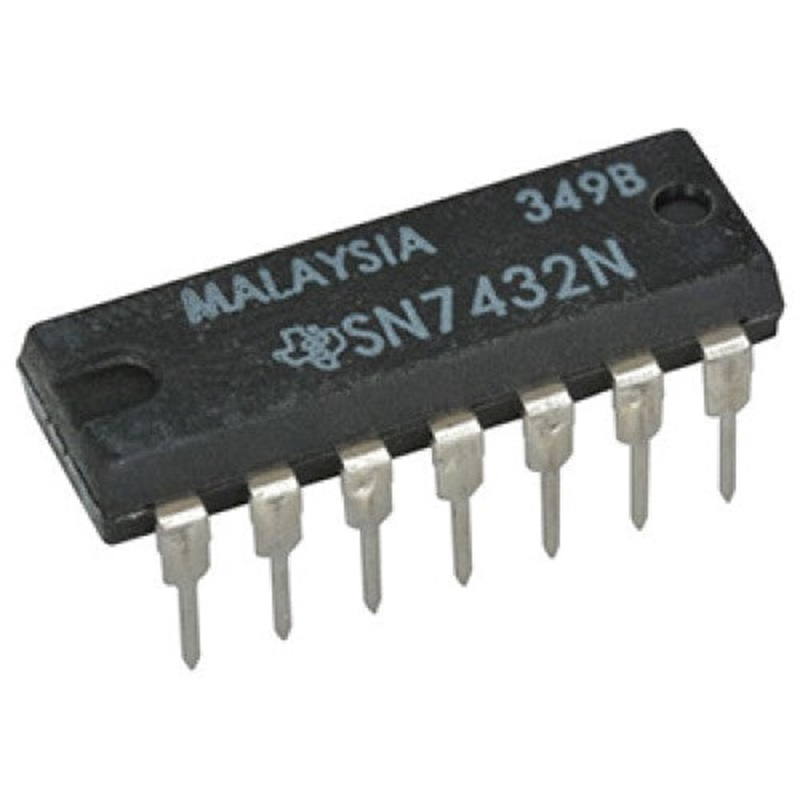

74S32N SN74S32N IC OR GATE 4CH 2-INP 14DIP

Add your review


36% off

50INR32 INR

Availability:In Stock



Description

Download Data Sheet

  • Click Here

    • Highlights

  • Logic Type: OR Gate
  • Number of Circuits: 4
  • Number of Inputs: 2
  • Voltage – Supply: 4.75V ~ 5.25V
  • Current - Output High, Low: 1mA, 20mA
  • Input Logic Level – Low: 0.8V
  • Input Logic Level – High: 2V
  • Max Propagation Delay @ V, Max CL: 9ns @ 5V, 50pF
  • Operating Temperature: 0°C ~ 70°C
  • Mounting Type: Through Hole
  • Package: 14-DIP
